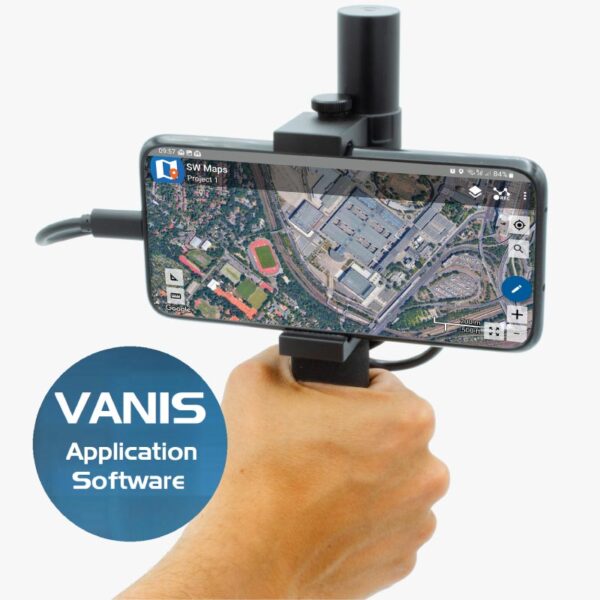

Vanis RTK Handheld Surveyor Kit
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum
has been the industry’s standard dummy text ever since the 1500s.
399,00€
In stock
This product comes with 2 years worldwide warranty
| Units | Price per unit |
|---|---|
| <50 | 399,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
Includes:
– ZED-F9P RTK receiver with USB and Bluetooth inside a plastic case
– Helical antenna
– USB-C cable
– USB OTG microUSB-B (14cm)
– USB OTG type C (22cm)
– Universal smartphone holder with 3M-Backed Rubber Pads, fits any smartphone from 5.3cm to 9.3cm with or without case
– Hand holder
– Velcro strap (20cm) to fix the receiver to the back of the smartphone holder
– Pre-configuration to send NMEA over Bluetooth and USB at the same time
Enhance your experience, add to your cart:
-
Shield for Septentrio Native Ethernet
Original price was: 42,00€.38,00€Current price is: 38,00€.
Vanis RTK Handheld Surveyor Kit
399,00€
In stock
This product comes with 2 years worldwide warranty
| Units | Price per unit |
|---|---|
| <50 | 399,00€ |
| >=50 | Contact us for special pricing |
| >500 | Contact us for special pricing |
Includes:
– ZED-F9P RTK receiver with USB and Bluetooth inside a plastic case
– Helical antenna
– USB-C cable
– USB OTG microUSB-B (14cm)
– USB OTG type C (22cm)
– Universal smartphone holder with 3M-Backed Rubber Pads, fits any smartphone from 5.3cm to 9.3cm with or without case
– Hand holder
– Velcro strap (20cm) to fix the receiver to the back of the smartphone holder
– Pre-configuration to send NMEA over Bluetooth and USB at the same time
With the Vanis RTK Handheld Surveyor Kit you will have everything you need to start your surveying tasks with RTK and centimetre level accuracy.
You can use your preferred Android app to power and connect to the simpleRTK2Blite receiver via USB OTG (type C or microB) or by Bluetooth.
You will only need to configure your NTRIP credentials and you are ready to go!
Good to know:
– Produced in the EU for Vanis d.o.o.
– You can power and connect to the GNSS receiver with only one USB OTG cable
– You can also use Bluetooth 2.0 (not compatible with iPhone)
– Fits any smartphone from 5.3cm to 9.3cm with or without case
– Smarpthone is not included
– This product is not compatible with iOS devices
– This product is recommended for geocatching applications
Description
Survey grade and low cost Dual band (L1, L2/E5b/B2I) active
GNSS antenna with TNC connector and 2.5m cable terminated
with SMA male. Supports GPS, GLONASS, Galileo, and BeiDou.
Perfect match for u-blox ZED-F9P and Septentrio Mosaic-H
boards.
Good to know:
· Compatible with all simpleRTK2B boards as well as any other
multiband GNSS receiver in the market.
· Bulk pricing starting 50 units
Specifications
2B Survey Budget antenna
Antenna element
· Supported positioning signal bands:
· GPS: L1, L2
· GLONASS: G1, G2
· BeiDou: B1, B2
· Galileo: E1, E5b
· QZSS: L1, L2
· SBAS: WAAS, EGNOS, MSAS and GAGAN
· Polarization: RHCP
· Peak gain: 5dBi
· Axial Ratio @ zenith: <3dB
· Azimuth Coverage: 360 degrees
· Impedance: 50 ohm
· Phase center error: ±3mm
Electrical
· Supply voltage: 3-5.5V
· Typical supply current @ 3V: 50mA
· Average LNA gain: 40dB
· Maximum Noise Figure: 1.5dB
· Maximum VSWR: 2
Mechanical
· Maximum length: 147mm
· Weight: 390g
· Mounting style: Magnetic base (requires accessory) or 5/8” x
11TPI thread
· Connector: TNC female
· Cable length: Includes 2.5 meter cable terminated in SMA male
Environmental
· Operating Temperature: -40 to +85°C
· Storage Temperature: -40 to +85°C
· IP Rating: IP66 (excluding air vent in screw hole, which can be
sealed when installed
Documentation
Start here
With the Vanis RTK Handheld Surveyor Kit you will have everything you need to start your surveying tasks with RTK and centimetre level accuracy.
You can use your preferred Android app to power and connect to the simpleRTK2Blite receiver via USB OTG (type C or microB) or by Bluetooth.
You will only need to configure your NTRIP credentials and you are ready to go!
Good to know:
– Produced in the EU for Vanis d.o.o.
– You can power and connect to the GNSS receiver with only one USB OTG cable
– You can also use Bluetooth 2.0 (not compatible with iPhone)
– Fits any smartphone from 5.3cm to 9.3cm with or without case
– Smarpthone is not included
– This product is not compatible with iOS devices
– This product is recommended for geocatching applications
