Professional Kits
Ready to work
In OEM format (white label) so you can create your own brand.
Made in Europe
Professional
RTK Calibrated
Surveyor Kit
Ready to work
Surveyors
High precision geolocation
From 452,00€/USD 519$
Made in Europe
Professional
Base-Rover Surveyor Kit
Surveyors
Independent solution
From 1.060,00€
Made in Europe
Professional
RTK Handheld Surveyor Kit
Utility maps
Lightweight
Original price was: USD $468.05.USD $421.25Current price is: USD $421.25.
PointPerfect RTK-SSR Receiver (Internet or L-band)
RTK without limits
Plug and play
USD $1,099.40
RTK Portable Bluetooth Kit
Tractor navigation
General purpose
Original price was: USD $316.25.USD $284.63Current price is: USD $284.63.
Specifications

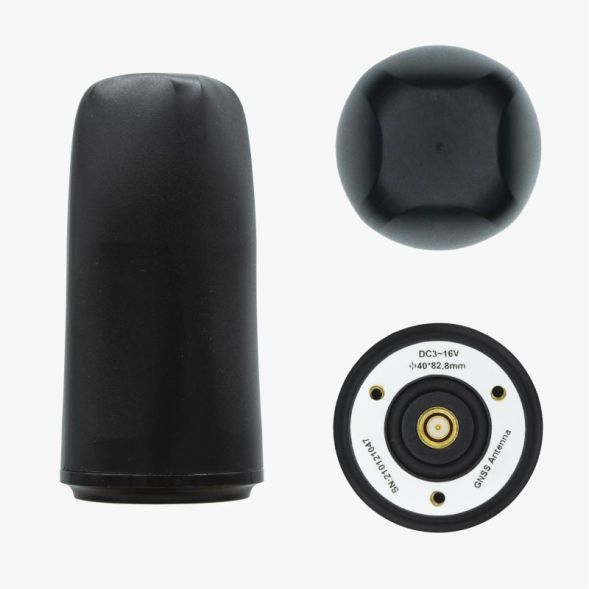

Lightweight helical GNSS Tripleband + L-band antena (IP67)  | Lightweight helical antenna for multiband GNSS (IP67)  | Budget Survey Tripleband GNSS Antenna (IP66)  | Calibrated Survey GNSS Tripleband + L-band antenna (IP67)  | Budget Survey GNSS Multiband antenna (IP66)  | u-blox GNSS Tripleband + L-band antenna ANN-MB2-00  | |
|---|---|---|---|---|---|---|
| Ideal for | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore |
| Bands | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 |
| Weight | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg |
| Max length | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m |
| GPS | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 |
| GLONASS | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 |
| BeiDou | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 |
| Galileo | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 |
| Cal File | No | No | No | No | No | No |
| Magnetic base | No | No | No | No | No | No |
| Mounting | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 |
| Antenna connector | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Cable length | 0 | 0 | 0 | 0 | 0 | 0 |
| Cable end connector | N/A | N/A | N/A | N/A | N/A | N/A |
| Voltage range | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V |
| Type current @ 3V | 35mA | 35mA | 35mA | 35mA | 35mA | 35mA |
| Peak Gain | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi |
| Av LNA Gain | 33dB | 33dB | 33dB | 33dB | 33dB | 33dB |
| Max Noise Figure | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB |
| Max VSWR | 2 | 2 | 2 | 2 | 2 | 2 |
| Polarization | RHCP | RHCP | RHCP | RHCP | RHCP | RHCP |
| IP rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Operating temp | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC |
| Storage temp | 2 | 2 | 2 | 2 | 2 | 2 |
| RoHS | Yes | Yes | Yes | Yes | Yes | Yes |
Compatible software/apps
Android apps: GNSS Master, Lefebure, SW Maps, Mapit GIS, Field Navigator, AgriBus, FieldBee, PinPoint GIS, Field Maps, Google Maps, QField, LocusGIS, Mobile Topographer, Kizeo Forms, ODK Collect, Mergin Maps, Aplitop TcpGPS, PointMan, Locus GIS.
GIS and CAD tools: AutoCAD, QGIS, ArcGIS, GeoDa, Google Earth, Google Maps.
Autosteer: AGOpenGPS, CEREA.
Configuration and Diagnosis: u-blox u-center.
Is your favorite software/app not on the list? Contact us and we will check its compatibility for you
Professional Kits
Ready to work
In OEM format (white label) so you can create your own brand.
Made in Europe
Professional
RTK Calibrated
Surveyor Kit
Ready to work
Surveyors
High precision geolocation
From 452,00€/USD 519$
Made in Europe
Professional
Base-Rover Surveyor Kit
Surveyors
Independent solution
From 1.060,00€
Made in Europe
Professional
RTK Handheld Surveyor Kit
Utility maps
Lightweight
Original price was: USD $468.05.USD $421.25Current price is: USD $421.25.
PointPerfect RTK-SSR Receiver (Internet or L-band)
RTK without limits
Plug and play
USD $1,099.40
RTK Portable Bluetooth Kit
Tractor navigation
General purpose
Original price was: USD $316.25.USD $284.63Current price is: USD $284.63.
Specifications
Lightweight helical GNSS Tripleband + L-band antena (IP67)  | Lightweight helical antenna for multiband GNSS (IP67)  | Budget Survey Tripleband GNSS Antenna (IP66)  | Calibrated Survey GNSS Tripleband + L-band antenna (IP67)  | Budget Survey GNSS Multiband antenna (IP66)  | u-blox GNSS Tripleband + L-band antenna ANN-MB2-00  | |
|---|---|---|---|---|---|---|
| Ideal for | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore |
| Bands | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 |
| Weight | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg |
| Max length | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m |
| GPS | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 |
| GLONASS | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 |
| BeiDou | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 |
| Galileo | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 |
| Cal File | No | No | No | No | No | No |
| Magnetic base | No | No | No | No | No | No |
| Mounting | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 |
| Antenna connector | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Cable length | 0 | 0 | 0 | 0 | 0 | 0 |
| Cable end connector | N/A | N/A | N/A | N/A | N/A | N/A |
| Voltage range | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V |
| Type current @ 3V | 35mA | 35mA | 35mA | 35mA | 35mA | 35mA |
| Peak Gain | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi |
| Av LNA Gain | 33dB | 33dB | 33dB | 33dB | 33dB | 33dB |
| Max Noise Figure | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB |
| Max VSWR | 2 | 2 | 2 | 2 | 2 | 2 |
| Polarization | RHCP | RHCP | RHCP | RHCP | RHCP | RHCP |
| IP rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Operating temp | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC |
| Storage temp | 2 | 2 | 2 | 2 | 2 | 2 |
| RoHS | Yes | Yes | Yes | Yes | Yes | Yes |
Compatible software/apps
Android apps: GNSS Master, Lefebure, SW Maps, Mapit GIS, Field Navigator, AgriBus, FieldBee, PinPoint GIS, Field Maps, Google Maps, QField, LocusGIS, Mobile Topographer, Kizeo Forms, ODK Collect, Mergin Maps, Aplitop TcpGPS, PointMan, Locus GIS.
GIS and CAD tools: AutoCAD, QGIS, ArcGIS, GeoDa, Google Earth, Google Maps.
Autosteer: AGOpenGPS, CEREA.
Configuration and Diagnosis: u-blox u-center.
Is your favorite software/app not on the list? Contact us and we will check its compatibility for you
Professional Kits
Ready to work
Affordable and ready to work RTK sets for professional users.
If you already have a phone or tablet, this is everything you need to start your surveying or high precision tasks with RTK and centimetre level accuracy.
In OEM format (white label) so you can create your own brand.
Made in Europe
Professional
RTK Calibrated
Surveyor Kit
Ready to work
From 452,00€/USD 519$
Made in Europe
Professional
Base-Rover Surveyor Kit
From 1.060,00€
Made in Europe
Professional
RTK Handheld Surveyor Kit
Original price was: USD $468.05.USD $421.25Current price is: USD $421.25.
PointPerfect RTK-SSR Receiver (Internet or L-band)
Just plug power, wait a few minutes and enjoy cm precision.
USD $1,099.40
RTK Portable Bluetooth Kit
Original price was: USD $316.25.USD $284.63Current price is: USD $284.63.
Specifications
Lightweight helical GNSS Tripleband + L-band antena (IP67)  | Lightweight helical antenna for multiband GNSS (IP67)  | Budget Survey Tripleband GNSS Antenna (IP66)  | Calibrated Survey GNSS Tripleband + L-band antenna (IP67)  | Budget Survey GNSS Multiband antenna (IP66)  | u-blox GNSS Tripleband + L-band antenna ANN-MB2-00  | |
|---|---|---|---|---|---|---|
| Ideal for | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore | Septentrio Mosaic-X5, Unicore |
| Bands | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 | L1/L”/L5/L6 |
| Weight | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg | 0.025Kg |
| Max length | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m | 0.083m |
| GPS | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 | L1/L2/L5 |
| GLONASS | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 | G1/G2/G3 |
| BeiDou | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 | B1/B2/B3 |
| Galileo | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 | E1/E5b/E6 |
| Cal File | No | No | No | No | No | No |
| Magnetic base | No | No | No | No | No | No |
| Mounting | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 | SMA + 3x M2.5*6 |
| Antenna connector | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male | SMA Male |
| Cable length | 0 | 0 | 0 | 0 | 0 | 0 |
| Cable end connector | N/A | N/A | N/A | N/A | N/A | N/A |
| Voltage range | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V | 3.0-16.0V |
| Type current @ 3V | 35mA | 35mA | 35mA | 35mA | 35mA | 35mA |
| Peak Gain | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi | 2.0dBi |
| Av LNA Gain | 33dB | 33dB | 33dB | 33dB | 33dB | 33dB |
| Max Noise Figure | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB | 2.0dB |
| Max VSWR | 2 | 2 | 2 | 2 | 2 | 2 |
| Polarization | RHCP | RHCP | RHCP | RHCP | RHCP | RHCP |
| IP rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Operating temp | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC | -40 to +85ºC |
| Storage temp | 2 | 2 | 2 | 2 | 2 | 2 |
| RoHS | Yes | Yes | Yes | Yes | Yes | Yes |
Compatible software/apps
Android apps: GNSS Master, Lefebure, SW Maps, Mapit GIS, Field Navigator, AgriBus, FieldBee, PinPoint GIS, Field Maps, Google Maps, QField, LocusGIS, Mobile Topographer, Kizeo Forms, ODK Collect, Mergin Maps, Aplitop TcpGPS, PointMan, Locus GIS.
GIS and CAD tools: AutoCAD, QGIS, ArcGIS, GeoDa, Google Earth, Google Maps.
Autosteer: AGOpenGPS, CEREA.
Configuration and Diagnosis: u-blox u-center.
Is your favorite software/app not on the list? Contact us and we will check its compatibility for you
Use drag and drop on table head to rearrange columns
| Product | Price | Functionality | Best possible accuracy | Bands | Constellations | How to enable RTK mode | Included correction data | Interfaces | Default Update rate | Maximum Update rate | Protocols | Antenna Calibration file | Water and Dust Resistance | Operating temperature range |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| From 452,00€/USD 519$ | Rover | 1 centimeter | L1/L2 | GPS GLONASS BEIDOU Galileo | internet (NTRIP) | No | USB Bluetooth | 1Hz | 10Hz | NMEA RTCM UBX | Yes (NGS) | Antenna: IP67 Receiver: dustproof | -40 to +85°C | |
| From 1.060,00€ | Base and/or Rover | 0.7 centimeter | L1/L2/L5 | GPS GLONASS BEIDOU Galileo | radio internet (NTRIP) | No | USB Bluetooth | 1Hz | 100Hz | NMEA RTCM UBX CMR, CMR+, SBF (optional) | Yes (NGS) | Antenna: IP67 Receiver: dustproof | -40 to +85°C | |
| Original price was: USD $468.05.USD $421.25Current price is: USD $421.25. | Rover | 1 centimeter + user hand error | L1/L2 | GPS GLONASS BEIDOU Galileo | internet (NTRIP) | No | USB Bluetooth | 1Hz | 10Hz | NMEA RTCM UBX | No | rainproof | -40 to +85°C | |
| USD $1,099.40 | Rover | 4 centimeter | L1/L2/L6 | GPS GLONASS BEIDOU Galileo | internet (NTRIP) L-band | Yes (1-year) | USB Serial port (TTL) | 1Hz | 10Hz | NMEA RTCM UBX | No | Antenna: IP67 Receiver: dustproof | -40 to +85°C | |
| Original price was: USD $316.25.USD $284.63Current price is: USD $284.63. | Rover | 1 centimeter | L1/L2 | GPS GLONASS BEIDOU Galileo | internet (NTRIP) | No | USB Bluetooth | 1Hz | 10Hz | NMEA RTCM UBX | Antenna not included | rainproof | -40 to +85°C | |
| USD $803.85 | Base | 0.7 centimeter | L1/L2/L5 | GPS GLONASS BEIDOU Galileo | radio (optional) internet (NTRIP) | No | USB Ethernet Serial port (TTL) MicroSD | 1Hz | 100Hz | NMEA 0183, v2.3, v3.03, v4.0 RINEX v2.x, v3.x RTCM v2.x, v3.x (MSM included) CMR v2.0 (out/in), CMR+ (input only) Septentrio Binary Format (SBF) | Antenna not included | dustproof | -40 to +85°C |
